TSO C44b
Continuous display of fuel burned,in upper display in
Gallons per Hour. Liters and Lbs per hr also available.
An amazingly low price includes Instrument harness and a Flow Scan 201 or 231 transducer.
Upgrade your old Hoskins, or Shadin System. Will function with any K factors; connector is pin to pin compatible.
Automatically calculates the K factor.
All programming done from the front panel.
Size 2.25" diameter (small hole)
Light Weight 5 oz with Super Thin 1.5" depth
Three year warranty. (yes, the only three year warranty around!)
Serial port sends and receives data from all GPS units, even handhelds.
Calculates fuel to next waypoint.
Displays All These Functions:
Total Fuel Used
Fuel Remaining
Endurance in Hours and Minutes
Fuel Required to next Waypoint
Fuel Reserve at Next Waypoint
Nautical miles per Gallon

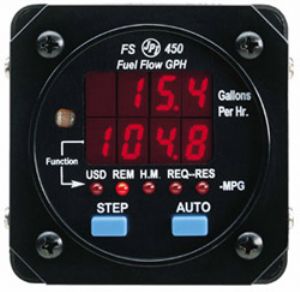

Features
FS-450 Can Mate to an old Shadin or Hoskins System.
Gallons per hour can be changed tap litres or Lbs.
QUE lights indicate which function is being displayed in the lower display
Auto Button, starts the automatic scan of the functions. Rate can be set from 1-9
Continuous display of fuel burn in Gal/Lbs/Litres per hour.
Step button can index information forward or backward. All programing done easily from the from panel with two buttons and no switches to toggle.
Documents
Installation Manual (PDF)
/images/fs450install.pdf
Installation Manual with Fuel Flow (PDF)
/images/f450installff.pdf
Pilot's Guide (PDF)
/images/fs450pilotsguide.pdf
In The Box
Indicator
Fire Sleeve
Harness
Transducer
Pilots Guide
