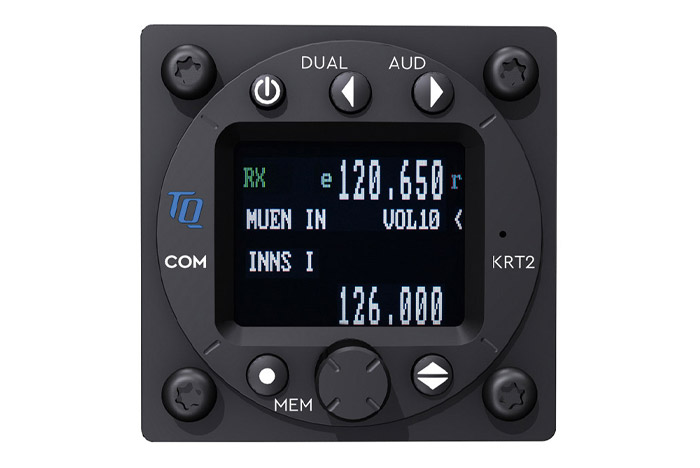

TQ-Aviation KRT2 Remote Control

285946.0102

AUD$1,089.00

Remote control unit for tandem seat aircraft with connecting cable Via the integrated interface of the KRT2 transceiver.

Quantity

Using the additional controls connected via the RS232 interface,

frequency, volume, squelch and VOX can be adjusted from the KRT2 RC, as well as local settings and display adjustments.

A KRT2 transceiver must be used with this remote head unit, as the KRT2 transceiver is the main control unit.

SPECIFICATIONS

Max. operating altitude: 35000 ft
Impact: 6g operating, 20g breakage limit
Wight: approx. 140 g
Dimensions: 31.2 x 63 x 62 mm (12.2 x 24.8 x 24.4 in.)
Typ: 8.33 / 25 kHz VHF radio transceiver, 117.975 - 137.000 MHz, 2278 channels
Frequency precision: ±5 ppm
Compatibility: EASA.21O.10058303; ETSO-2C169a / TSO-C169a; FCC in preparation
Compatibility: Transmitter: EUROCAE ED-23C Class 4, 6, RTCA DO-186B Class 4, 6 | Receiver: EUROCAE ED-23C Class C-D-E-H1/2, RTCA DO-186B Class C-D-E | Environment: RTCA DO-160F / ED14F | Software: RTCA DO-178C / ED12C Level D
Operating voltage: 9 - 30 V DC
Power consumption (@12V): Standby: 1 - 1.4 W (depending on display brightness setting) | Transmit: 17 - 30 W (depending on modulation level)
Transmitted power: 6 W @ ? 13.5 V
Operating temperature: -15°C ... +55°C
Loudspeaker output: ?10 W an 4 ?
