ENGINE BAFFLE KIT, Bare, Black Seals C172p-79580BRBK

C172p-79580BRBK
AUD$3,960.00 AUD$2,750.00
Stock 1

Complete Engine Baffle Kit
Keep your engine cool with new baffle kits!
Airforms is the premier manufacturer of FAA-PMA replacement baffle kits

  • 6061-T6 aluminum with black high temperature fiberglass reinforced silicone seals pre-installed
  • Bare aluminum or gray powder coat finish (part number indicates finish type)
  • Individually interchangeable with factory baffles
addthis

Many Improvements:

  • Stainless steel brackets where needed
  • Hard rivet construction
  • 1/2" back plates to secure seals
  • Improved fit

Notes:

  • If aftermarket components (starter, alternator, exhaust, engine mod, etc.) have been installed, it is the installer's responsibility to adjust baffles to fit.
  • Mounting hardware (nuts, bolts, screws, tinnerman clips, springs, etc.) and intercylinder baffles are not included.

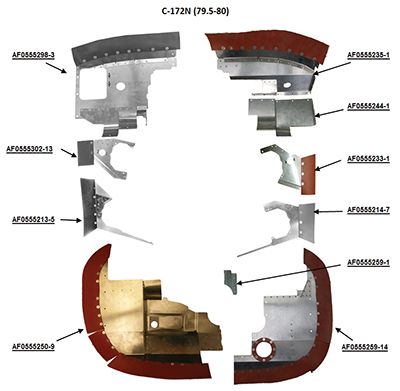

Kit Components

Part Number C172N-79580BRBK contains the following:

Component Description Quantity U/M
AF0555213-5 Baffle Assy. #1 Rocker Cover 1.000 EACH
AF0555214-7 Baffle Assy. #2 Rocker Cover 1.000 EACH
AF0555233-1 #4 Rocker Cover Assy. 1.000 EACH
AF0555235-1 L/H Rear Baffle Assy. 1.000 EACH
AF0555244-1 Lower L/H Rear Baffle Assy. 1.000 EACH
AF0555250-9 R/H Front Baffle Assy. 1.000 EACH
AF0555259-1 Governor Support Assy. 1.000 EACH
AF0555259-14 L/H Front Baffle Assy. 1.000 EACH
AF0555298-3 R/H Rear Baffle Assy. 1.000 EACH
AF0555302-13 #3 Rocker Cover Assy. 1.000 EACH
AF0555600 COVER PLATE 2.000 EACH
