Q: Do the Plane Power Powerflex Voltage Regulators listed on this page provide noise reduction as well?
Per the supplier: No, these units are not equipped with noise reduction.

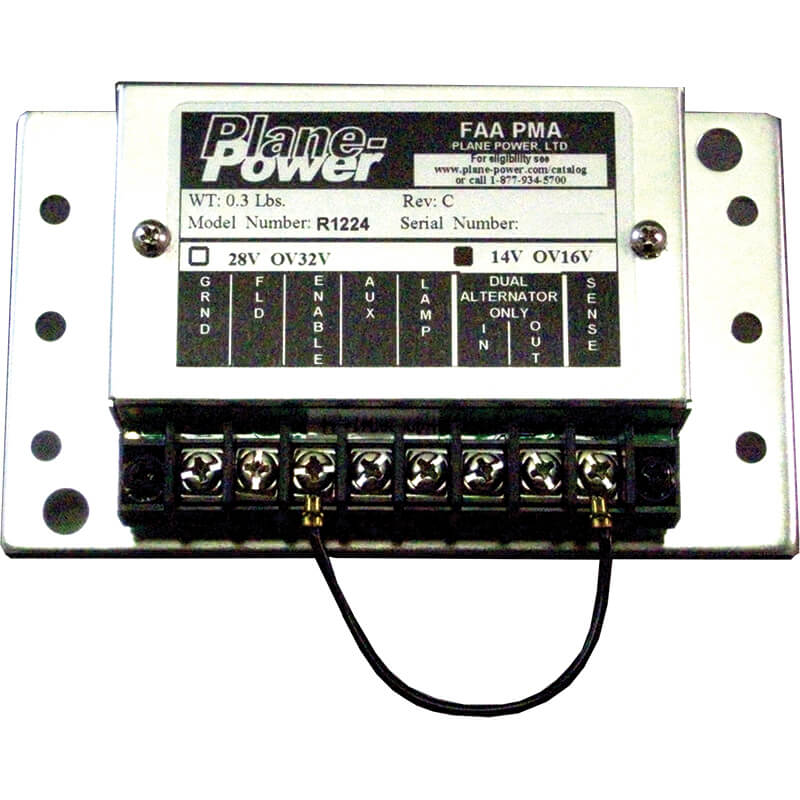

Q: Does this Plane Power Powerflex voltage regulator replace InterAv P/N 625-61623? 14 volt Neg ground?
Yes, per the Fit Guide PDF in the "Application Guide" tab of the web page, part number R1224 (our part number 07-01305) will replace InterAv 625-61623. However, we recommend that you verify your aircraft application using the fit guide to confirm it is the correct replacement.
Q: Is the 12-1021 adapter plate included?
No, the 12-1021 adapter plate is not included but can be purchased separately.
Q: What's the difference between the R1224 and R1224B products? Which one is appropriate for E-AB aircraft? Which one is compatible with the Plane Power C14-100 alternator?
The only difference between the two products is the mounting base. Both would be appropriate for an E-AB aircraft along with the Plane Power C14-100 alternator.
Q: Does the unit come with wire connectors that fit the terminals on the regulator? Does not appear that the existing aircraft terminal ends will fit the regulator.
Yes, this will come with the connectors.
Q: What is the warranty period of the Plane Power R1224 voltage regulator?
All warranty issues / requests on this regulator must be handled direct with Plane Power:
New: 36mo/1000 operating hours whichever comes first
Overhauled: 6 months / 250 operating hours whichever comes first
Q: Does the unit come with connectors? there were none in my package
No, wire connectors are not included.
Q: What is the ring terminal size required for the terminals?
These use #8 terminals.
Q: Are these FAA/PMA?
Yes, these are FAA PMA approved.
Q: What are the General Dimensions of the Plane Power R1224 product?
Approx 3 by 5
Q: Are the R1224 and R1224B voltage regulators a direct replacement for the Skytronics Jasco voltage regulator?
The R1224J model is approved for use in Jasco alternator conversion kits.
Q: How many amps is this R1224S-14 rated for?
The R1224S-14 is rated for a max of 5 amps.
