RADIANT DIGITAL ALTIMETER 2-1/4 NON TSO

10-06247
AUD$814.00

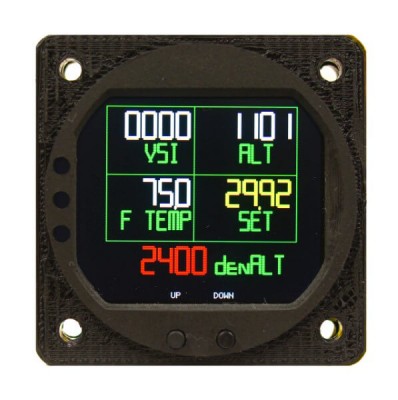

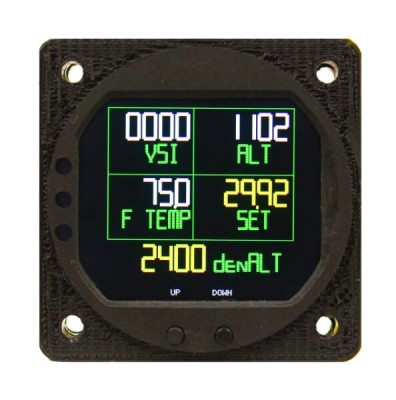

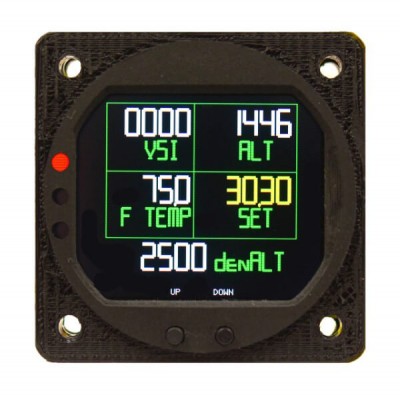

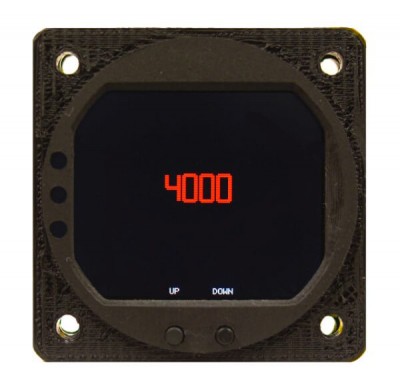

The RADIANT Digital Altimeter is designed to show simultaneous digital altitude, digital VSI, digital outside temperature and digital density altitude in a single glance, easy to read format. All of this information is presented digitally on a single vivid LCD screen. The instrument fits in a standard 2.25” enclosure. Replacing four conventional instruments with one digitally accurate single instrument saves panel space and reduces aircraft weight. Additionally, the altitude sensor used within this instrument is amazingly accurate, showing differential altitudes with precision of 1 foot.

Features

  • Brilliant daylight readable LCD display
  • Provides current altitude, temperature, VSI, and density altitude in digital format
  • Shows and allows changing of current barometric pressure.
  • Temperature may be displayed in Fahrenheit or Celsius format.
  • Display is “sunglass friendly” -- bright; readable with polarized glasses.
  • Works between -20C and +60C

addthis

Q: Is there a separate temp probe, or is it just built into the instrument?

The temp probe is separate from the instrument itself. It must be installed on the exterior of the aircraft.

Q: Whats included with this unit? Temp probe? Potentiometer for the dimmer? Harness?

Per Specifications in Installation Manual: the External Dimmer Potentiometer and the Harness are included.

Q: What is the max current draw of this Belite Altimeter instrument at 12VDC?

80 milliamps @ 12 volts.

Q: Does this need to be calibrated or not?

This unit is able to self calibrate.
