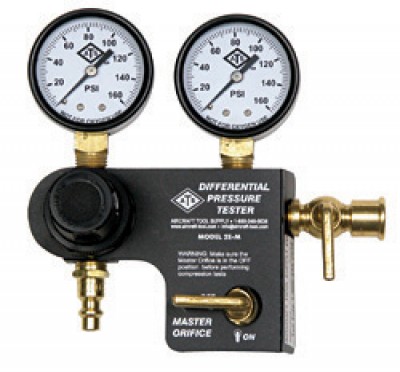

Q: What size spark plug adapter does this differential pressure tester with master orifice come with?
This unit comes standard with an 18mm adapter. It can be special ordered with 12mm or 14mm adapters.
Q: Does this come with a calibration certificate?
No, a calibration certificate is not automatically included. If you require one, please request it at time of order. Be aware that the addition of the certificate may affect processing time.
Q: What size is the Master Orifice ?
The orifice size is .040"
Q: What fittings are on each end of the hose?
The hose has common air compressor style quick release fittings.
Q: What is the part number for the 12mm adapter that would work with this unit?
It is our part number 12-01018.
Q: Does this have a manufacturer calibration label sticked on it? Not necessarily a separate certificate. Thank you.
The calibration cert would need to be requested when the order is placed, one is not included with this tool.
Q: What is the size of the pneumatic fitting on the input side?
It uses a standard air compressor quick release fitting. Itis a 1/4" NPT m-style industrial plug.
