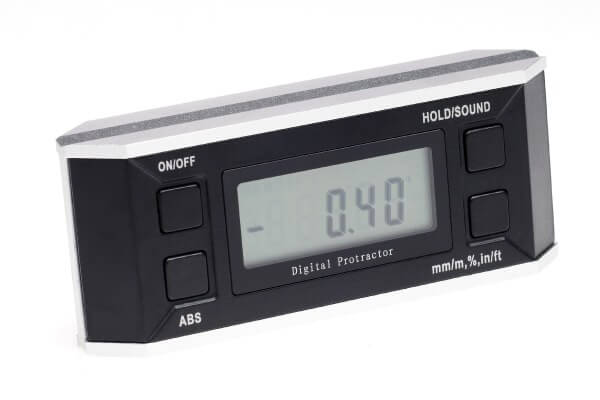

DIGITAL PROTRACTOR/LEVEL ND-81

12-02651
AUD$255.95

This Digital Protractor is a durable, highly accurate and affordable measuring tool built around a rugged frame that is used as a protractor, level and angle finder.

Very popular with aircraft builders, mechanics and woodworkers. Used for flight control surface rigging, setting propeller angle, and aircraft leveling and more.

Features

  • Larger display for easier reading
  • Heavy duty, foam padded storage carton
  • Full 360-degree measuring range with maximum resolution and accuracy of 0.1 degree
  • Simple 30 second calibration procedure using only the top flat edge of a table or desk
  • Alternate zero button to set zero starting point at any angle (commonly used for aileron, flap and elevator rigging)
  • Display hold button to freeze reading when measuring in tight spaces
  • Readout stays upright even when protractor is upside down

addthis

Q: What are the dimensions of the Digital Protractor / Level ND-81?

Approximate dimensions: 6-1/4" x 2-1/2" x 1-1/4"

Q: Does this Digital Protractor / Level ND-81 come with a calibration certificate?

No, the box only includes the unit, two batteries, and the instruction sheet. The instruction sheet does include details on how to calibrate the unit once you receive it.

Q: Will this work on the horizontal plane, for example to check rudder travel?

Unfortunately not. It will only work with the horizontal flight control surfaces (ailerons, elevator, etc).

Q: Can you tell me the manufacturer of the ND-81 digital protractor?

The manufacturer of this unit is Nav-Data.

Q: How long do they stay on, Ours times out after 5 minutes. Is there an adjustment to stay on longer?

The 5 minute shutoff is a battery saving feature and cannot be adjusted.
