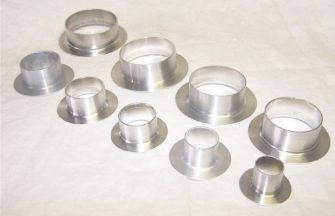

Q: What grade aluminum are the 10350-12 flanges? Thanks Just what I've been looking for by the way!
These flanges are made from .063" 6061-0 aluminum.
Q: Do these flanges come beaded?
No, they are a straight tube flange for ducting.
Q: What grade aluminum are the 10350-4 flanges?
6061-T0 aluminum.
Q: Is the ducting dimension the outer diameter of the flange?
The flange dimension is the O.D. of the flat part that sits flush with the mounting surface, and the ducting dimension is the I.D. of the air duct to be attached to the unit.
Q: What is the diameter of 10350-6?
Major diameter is 2-3/8" & minor diameter is 1-1/2".
Q: Do the 10350 flanges have any surface treatment, ex. anodize ?
The 10350 flanges do not have any surface treatment on them.
Q: What is the wall thickness and ID of 10350-12?
The wall thickness is approx. .070", and the ID is 2.855".
Q: What is the actual inside diameter of Al flange 10350-9?
This measures to 1.1".
Q: Im looking for a flange with an I.D. of 1.5. What is the I.D. of the 10350-7? Thanks.
Diameters for 10350-7: major dia, 2-3/4 & minor dia, 1-3/4
Q: 10350-9 what is the OD of the ducting as well as wall thickness?
The od of the point where the ducting attaches is 2.25, the od of the flange at its widest point is 3.28, the metal is .058 thick.
