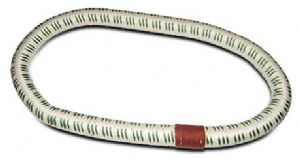

Braided cover is high grade yarn. Manufactured to meet specification MIL-C-5651B, Type II. Shock cord is used in landing gear to reduce shock transmitted to fuselage while landing and taxiing and on other shock mounting applications. Color coded to insure fresh stock.CW (Cold Weather) shock rings available on Special Order basis. Prices are approx. twice that of standard shock rings. Add "-CW" to standard part number when ordering
Ring No. |
Ring Size* (In.) |
Test (Lb.) |
Aircraft Application |
# Req. |
9044 |
9/16x4-1/2 |
400 |
Hatz Bi-Plane |
4 |
9090 |
9/16x9 |
425 |
Taylorcraft B |
4 |
9010HD** |
9/16x10 |
475 |
Taylorcraft BC |
4 |
|
1080 |
5/8x8 |
750 |
Stolp Starduster,Rans 54/5 |
4 |
1080HD** |
5/8x8 |
900 |
PA-16, PA-18 |
4 |
|
|
|
PA-20, PA-22, PA-25 |
4 |
|
1174 |
11/16x7-1/2 |
730 |
Piper J-2, Early J-3, J-5 |
4*** |
1192 |
11/16x9-1/4 |
750 |
Taylorcraft D |
4 |
11104 |
11/16x10-1/2 |
750 |
Taylorcraft L-2 |
4 |
|
1280 |
3/4x8 |
750 |
Stolp Starduster Too |
4 |
1280HD** |
3/4x8 |
950 |
Piper J-3 (S/N8277 up), |
4 |
|
|
|
PA-11, PA-12, PA-14 |
4 |
|
|
|
PA-18 (thru S/N18-3013)Rans |
4 |
|
|
|
S10 Acrosport, Pitts S-2 |
|
8097 |
1-1/2 x 9-7/8 |
400 |
PA-24, PA-30 |
2 |
|
1286 |
3/4x8-3/4 |
750 |
Aeronca (S/N330 up) |
4 |
1286HD** |
3/4x8-3/4 |
950 |
Skybolt |
6 |
1380 |
13/16x8 |
1160 |
PA-20 (before 1952) |
2 |
|
|
|
Pitts (S-1, S-1C, S-1S) |
4 |
|
|
|
Husky,Acrosport 2, Rans S9 |
|
1st dimension is cross section; 2nd dimension is inside dia. of ring.
**HD - Heavy Duty, higher test rings.
***6 Rings for J-5.
